Hydraulic brakes
List

Electric bike hydraulic disc brake

EH-M818

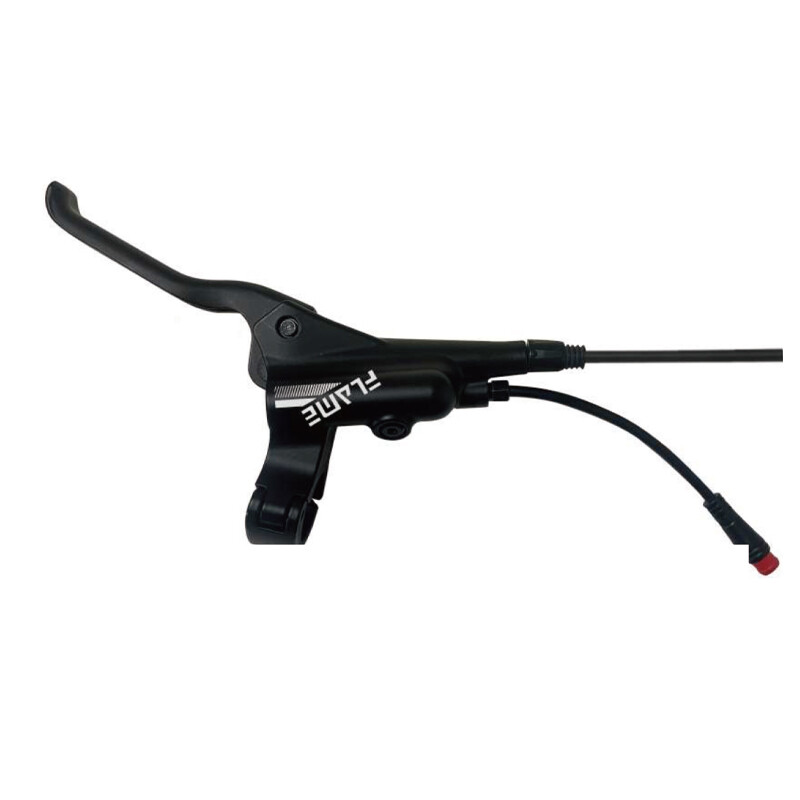

◆ Upper pump: aluminum alloy forged handle/aluminum alloy casting bracket

◆ The design of pump and cylinder within the same body and a closed oil tank reduces the risk of oils pils and air

◆ Reed switch disconnect

◆ Brake lever is installed wth a lock without removing the handlebar grip

◆ 2 finger length lever

◆ 3 finger length lever

◆ Painting: Black

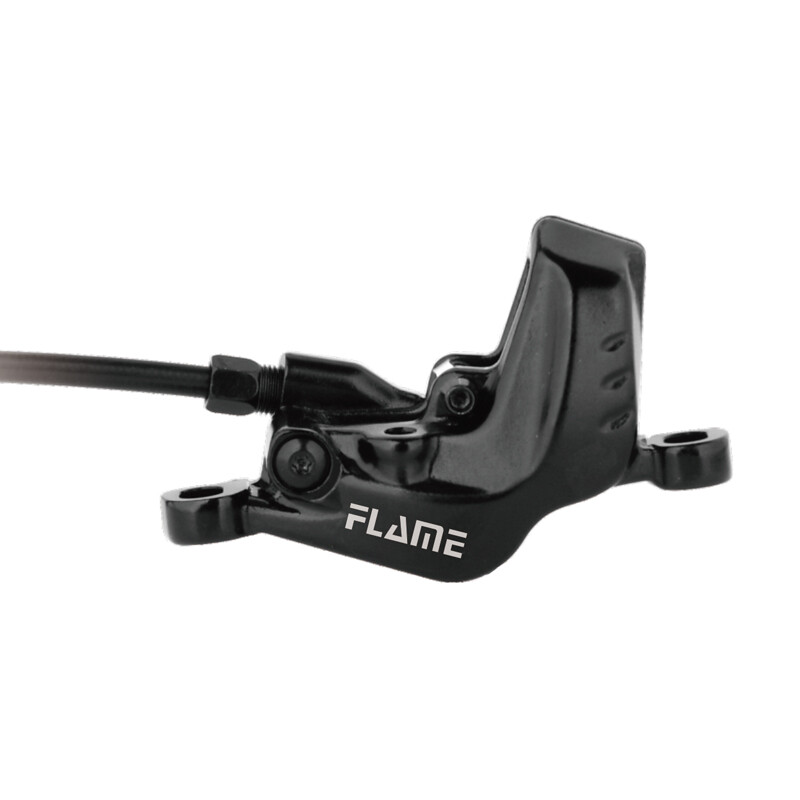

◆ All aluminum alloy forged caliper body

◆ Open system

◆ Bilateral braking 4-piston caliper offers strong braking force, perfectly suitable for all kinds of road conditions

◆ Ultra-wide pads improve braking stability and efficiency impressively

◆ The brake pads become more easily replaceable from the top, compatible with heat-dissipating pads

◆ Compatible with right-hand side caliper

◆ Mount type: International standard mount type & post mount type


DISC ROTOR SPECIFICATION

◆ F: φ160 φ180 φ203

◆ R: φ160 φ180 φ203

◆ Compatible with 2.5mm thick disk rotor

Strength Catalog Download
